Robot Indicator Lights Guide

This article explains the meaning of the different lights on the Swivl Robot.

Top of Robot Base

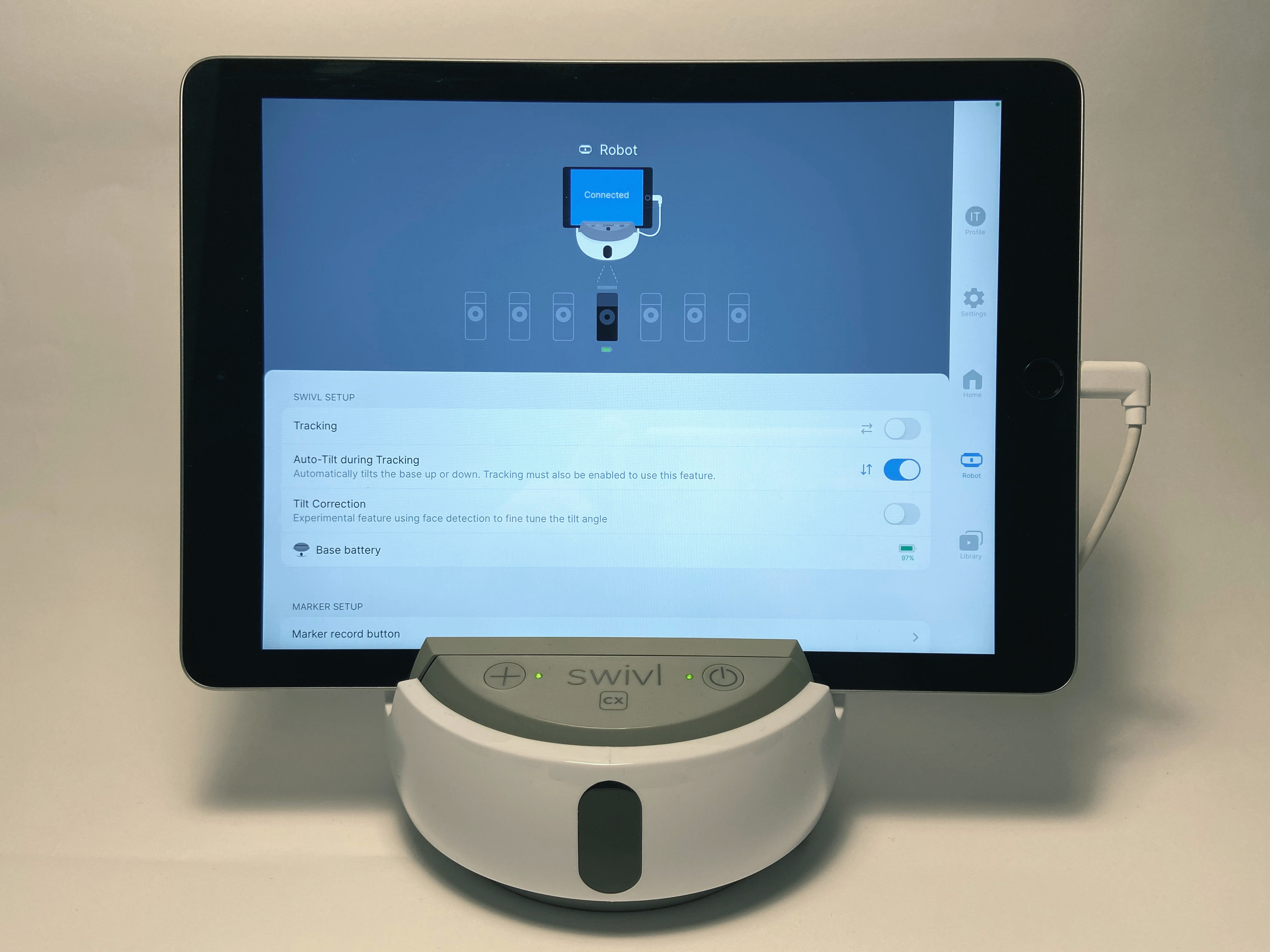

Power button light: Solid green
Plus button light: Solid green
Meaning: The mobile device and at least one marker are successfully connected to the Robot base. Remember to turn on the Primary Marker, which will have two green lights on the side once it is turned on. Learn more about marker lights here

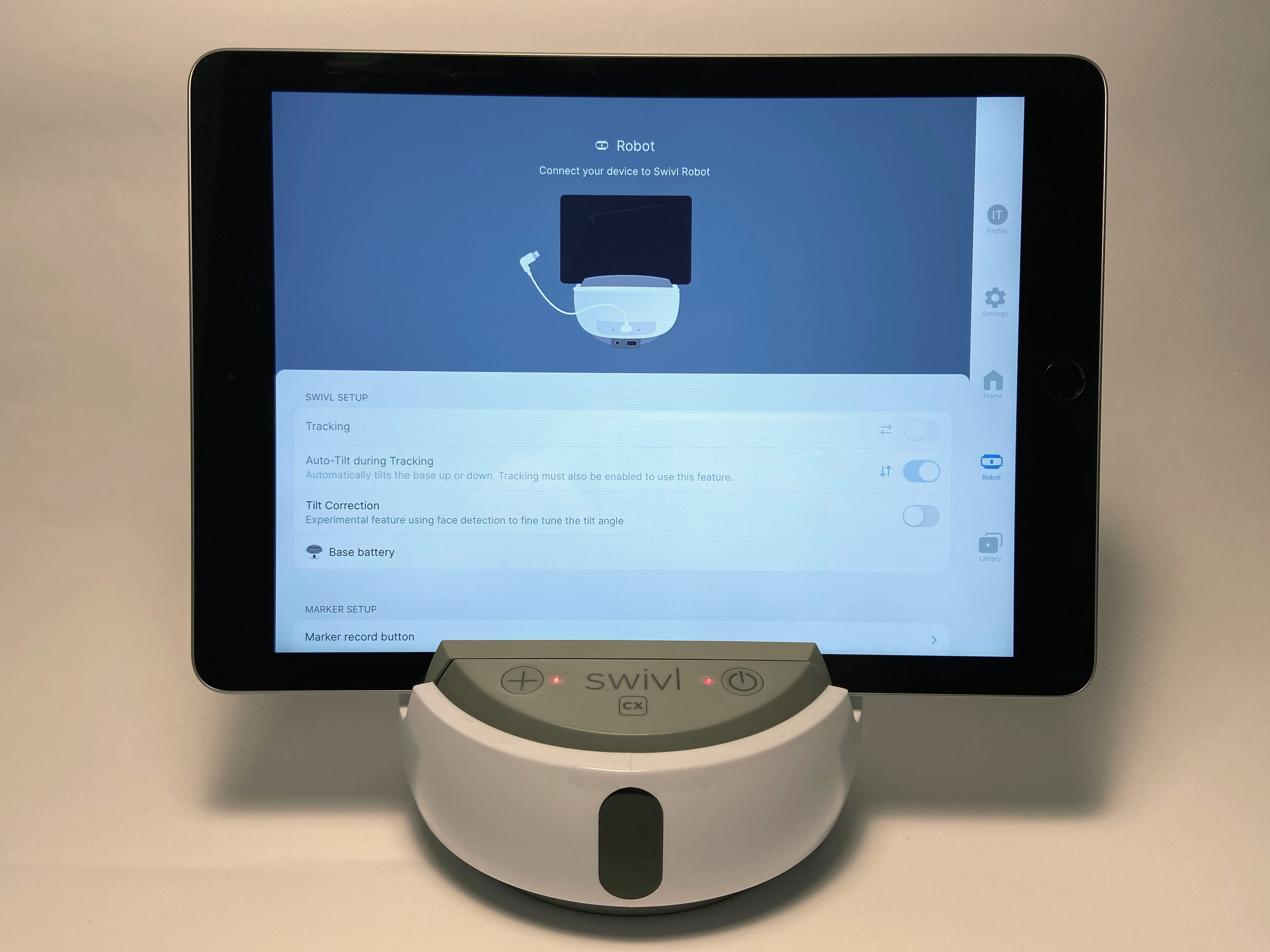

Power button light: Solid red
Plus button light: Solid red
Meaning: Neither the mobile device or a Marker are connected to the Robot base.

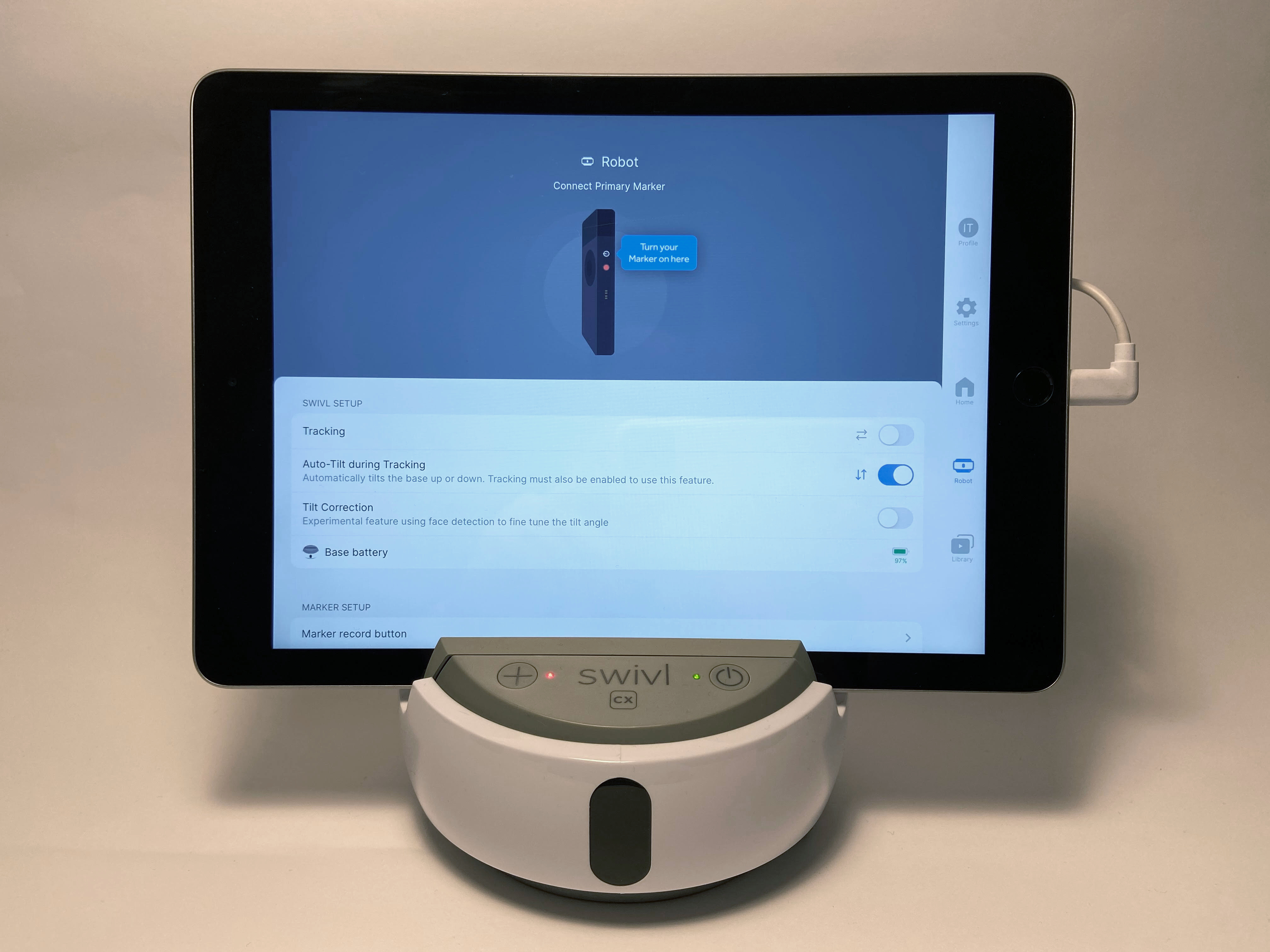

Power button light: Solid green
Plus button light: Solid red
Meaning: A mobile device is connected to the Robot base, but a Marker is not connected.

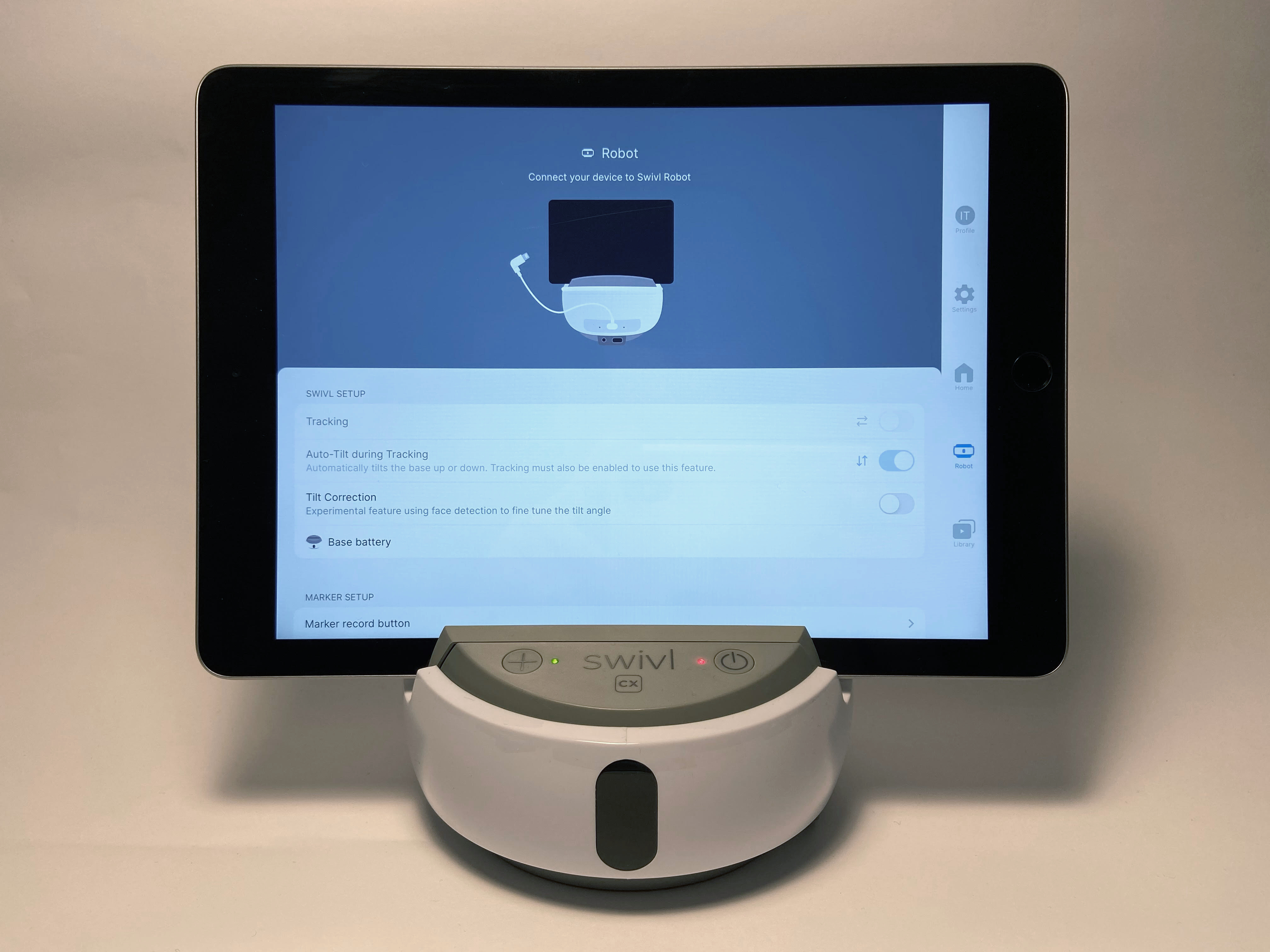

Power button light: Solid red
Plus button light: Solid green
Meaning: A mobile device is not connected to the Robot base, but a marker is connected.




Power button light: Blinking red
Plus button light:
Blinking red
Meaning:
The Robot base's battery is critically low. Plug in the Robot to charge.




Back of Robot

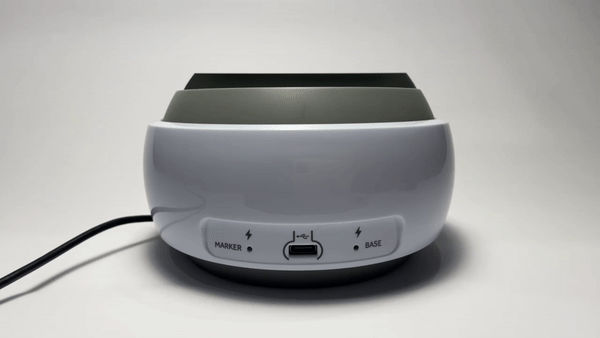

Marker light: Blinking green
Base light: Blinking green
Meaning: The Marker and Base are both charging and are over 40%.

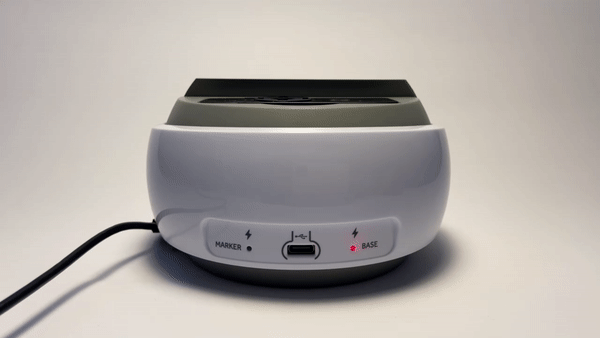

Marker light: Blinking red
Base light: Blinking red
Meaning:
The Marker and Base are charging and are critically low.

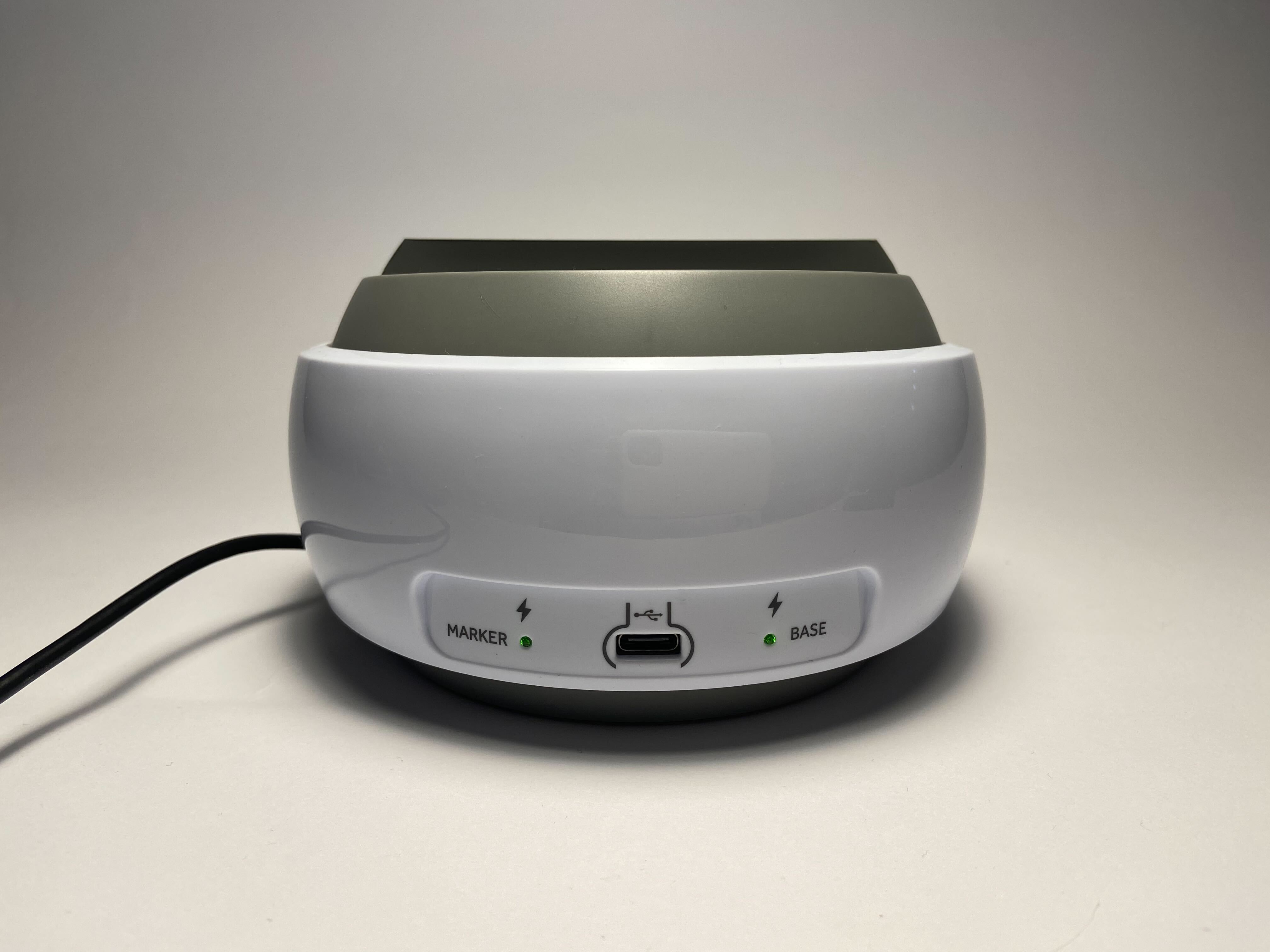

Marker light: Solid green
Base light: Solid green
Meaning: The Marker and Base are fully charged.
