M2 Remote and How to Use It

In this article

• 2. How can I charge the Remote?
• 3. How can I check the level of the Remote Battery?
• 4. How can I turn the Remote on/off?
• 5. How can I check if the Remote is connected to the M2?
• 6. How can I wear the Remote?
• 7. What can I do with Remote?
• 8. Remote docking station
• 9. How to Record a Multi-Remote Video
• 9. Video demonstration of how tracking works

1. Where can I find the Remote?

The Remote is located at the back of the M2. To remove it from the M2 and start using it, simply press the button located at the top of the Remote.

2. How can I charge the Remote?

To charge the Remote, simply insert it back into its Dock at the back of the M2. When you see a blinking light, it means the Remote is still charging. It usually takes about two hours for the Remote to be fully charged.

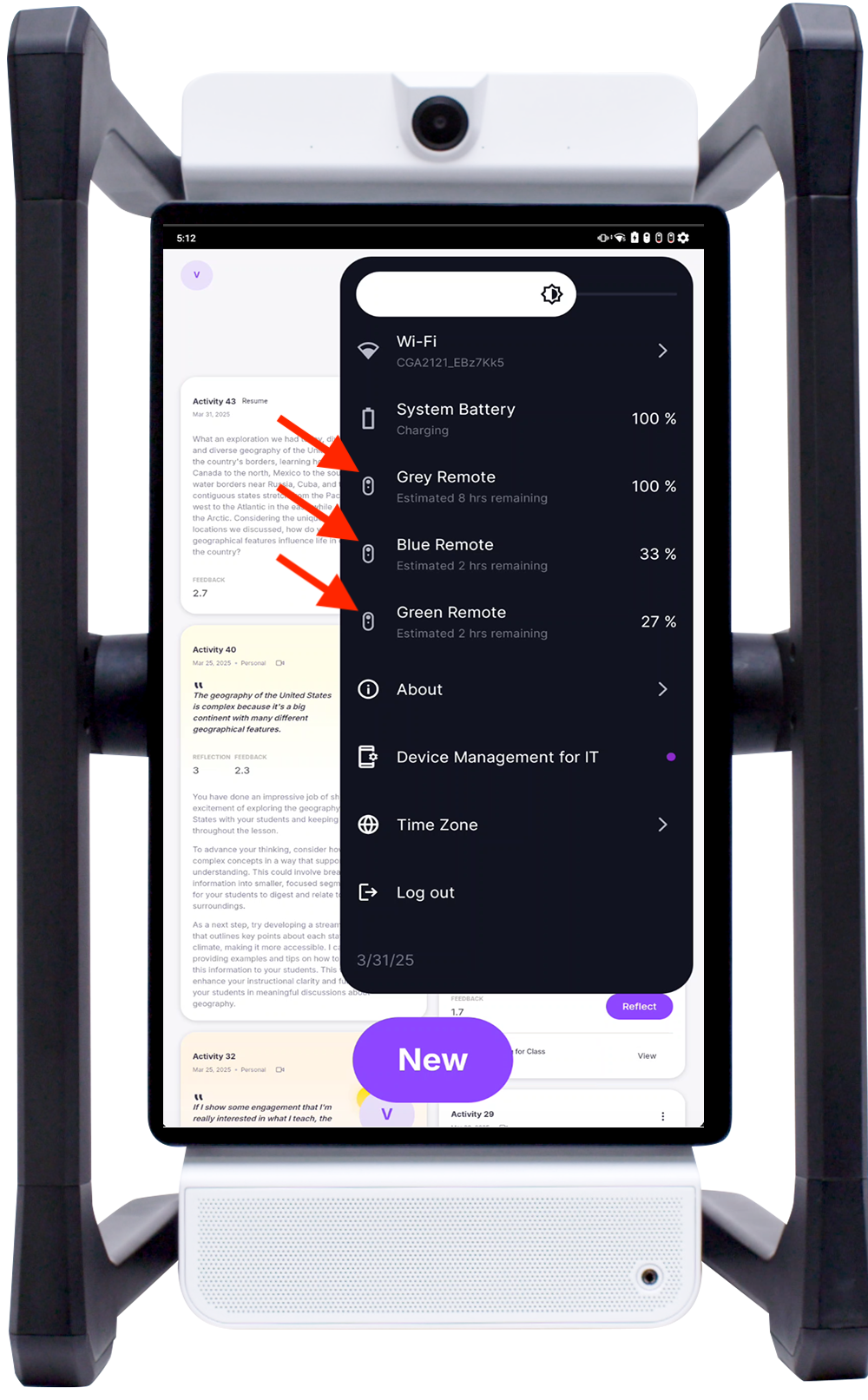

3. How can I check the level of the Remote Battery?

To check the level of the Remote Battery, simply select the gear icon located at the top right corner of your M2 screen to access Quick Settings. In that section, you'll also discover details about the estimated time left for it to fully discharge.

4. How can I turn the Remote on/off?

To turn the Remote on, hold the button on the right side of the Remote for 3 seconds. The light will blink a few times. Once it is turned on, the light will become solid. If you want to turn the Remote off, repeat the same steps.

5. How can I check if the Remote is connected to the M2?

When you notice a solid light on the Remote after powering it on, you will see a Remote icon without a cross in the top right corner of your M2. This indicates that the Remote is successfully connected to the M2. However, if the Remote icon is crossed out, it means that the connection to the device is not established correctly. Additionally, when the Remote is placed in the Dock, it disappears from the status bar.

connected

  disconnected

6. How can I wear the Remote?

Untangle the lanyard wrapped around the Remote and put the longer end of the lanyard around your neck. Attach the end of the lanyard in slot as in the picture below:

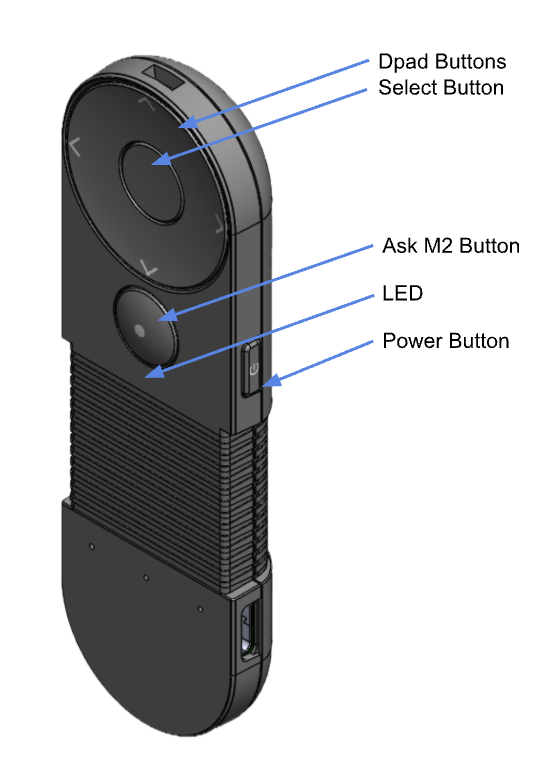

7. What can I do with Remote?

Press and hold Ask M2 button to ask M2 a question while in Observation Mode. You can then finish the interaction by pressing on the Ask M2 button again.

Speaker can also be tracked within a 180-degree range wearing the Remote. The M2 does not physically move during this process. The tracking feature is made possible by a wide-angle 180-degree built-in camera that automatically adjusts its angle based on the infrared signal received from the Remote control.

8. Remote docking station

To learn more about the Remote Docking Station, please refer to this document:
Remote Docking Station Overview

9. How to Record a Multi-Remote Video

Turn on the M2 and pair the remotes by placing them in the M2 dock. Once they are paired, you can start an observational video. For more information on how to create and share an observational video, please refer to this article: How to Create and Share a Personal Observation Video from M2/MirrorTalk to Reflectivity.

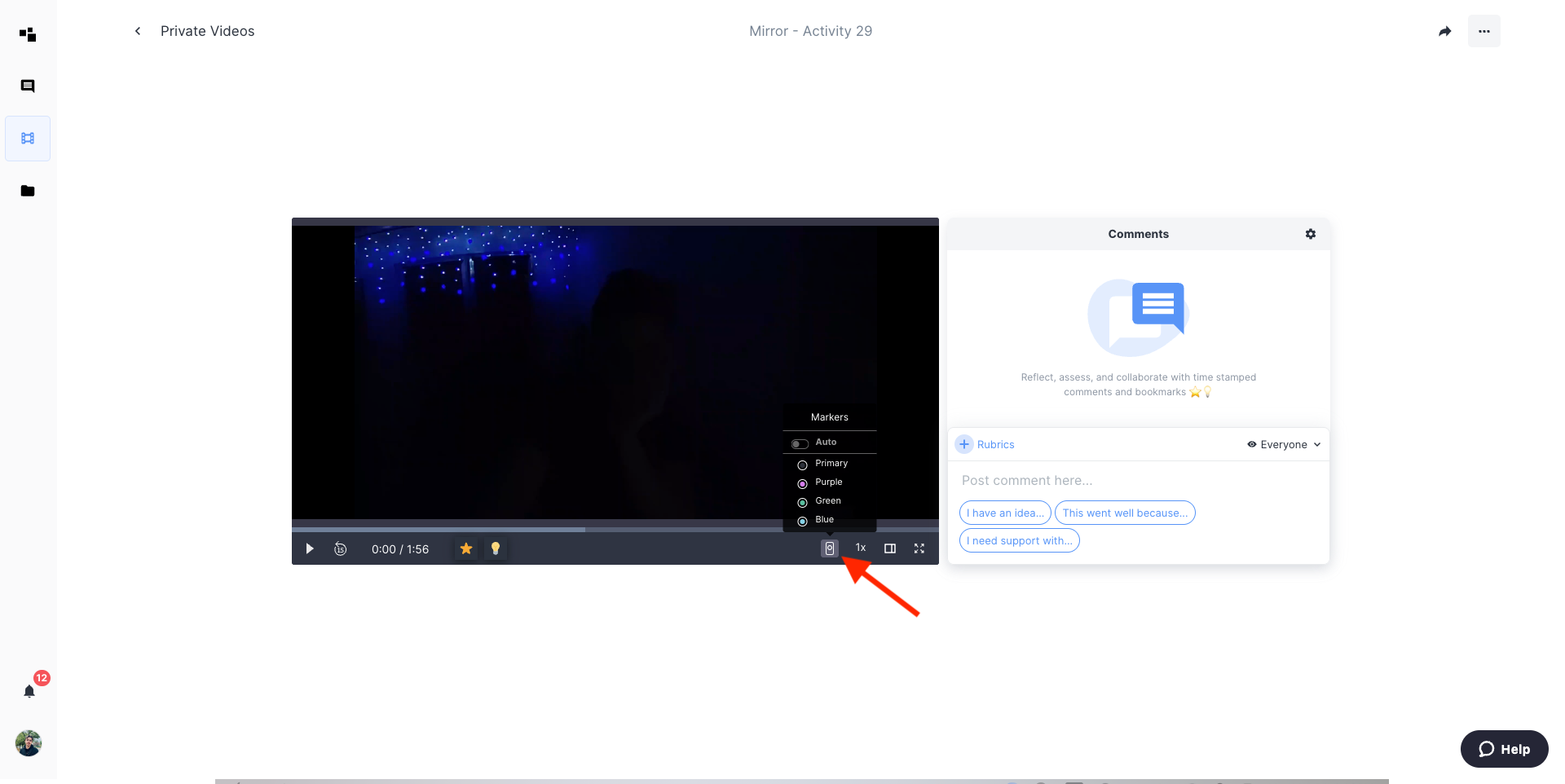

After recording, the video will be automatically saved on MirrorTalk.ai, where you can switch between the remotes to listen to each student or group of students

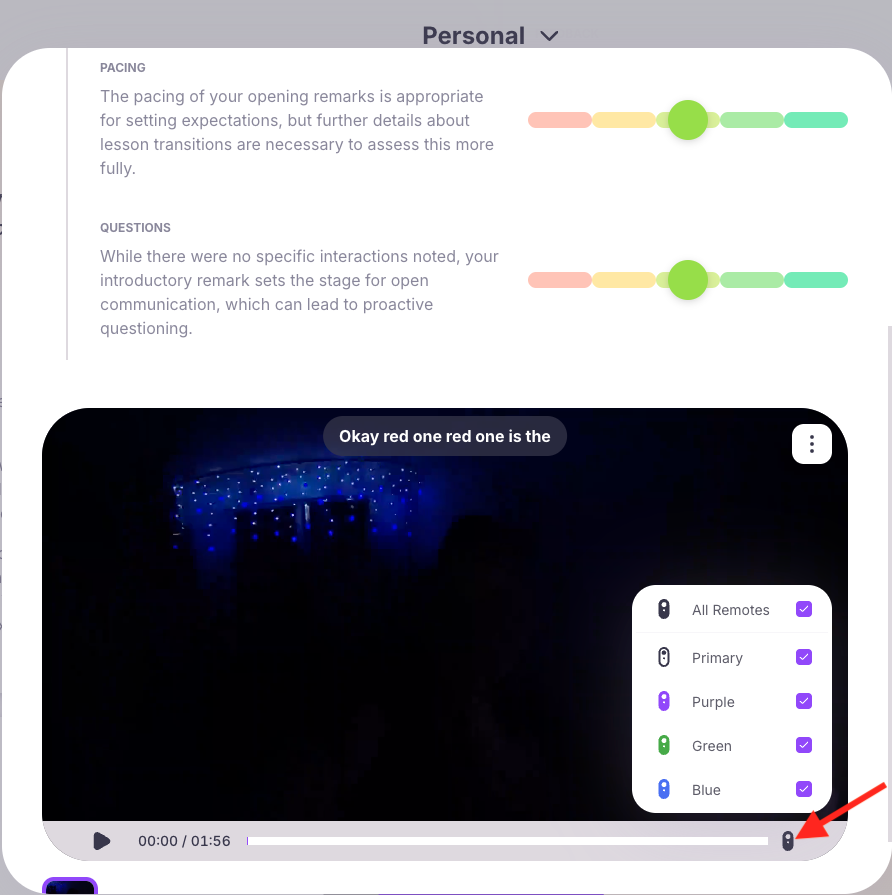

(In the example below, you can see four remotes in the remotes section, but only three are paired. This is because the purple icon indicates the M2 base microphone. This will be updated soon.)

If you uploaded the video to Reflectivity, you can access and manage it from the Reflectivity platform as well.

9. Video demonstration of how tracking works

To learn more about M2 Remote buttons and lights, check out M2 Remote Lights and Buttons.
